Pointless Audio / Plugins / SnakePit

P4Tube strip, our own

SnakePit

One tube makes the character. The rest of the chain feeds it.

A physical model of a triode — an original design — makes the harmonics. The chain exists to feed it at the right level: an iron DI front end, two compressors in series, tape polish, an output transformer. It sounds like one machine — and it doesn’t care what you feed it.

Machine
Our own tube channel strip
Version
v1.5.3
Runs on
VST3 · CLAP — macOS, Windows, Linux. AU on macOS. AAX for Pro Tools on macOS and Windows
Latency
69 samples at 44.1 kHz, 73 at 48 kHz (about 1.5 ms), reported to the host
License
Pay once. No iLok, no account, no subscription
Manual
Online · PDF
€24Buy

Or all six for €49, SnakePit included. Get all six · Full refund within 14 days if you don’t keep it.

4.9 out of 5, from 57 ratings on Gumroad, free weeks included

Data platev1.5.3

High-pass
30 Hz, always on
Air shelf
8 kHz, 0 to +6 dB
Gain
±20 dB, unity at 5

Values from the manual

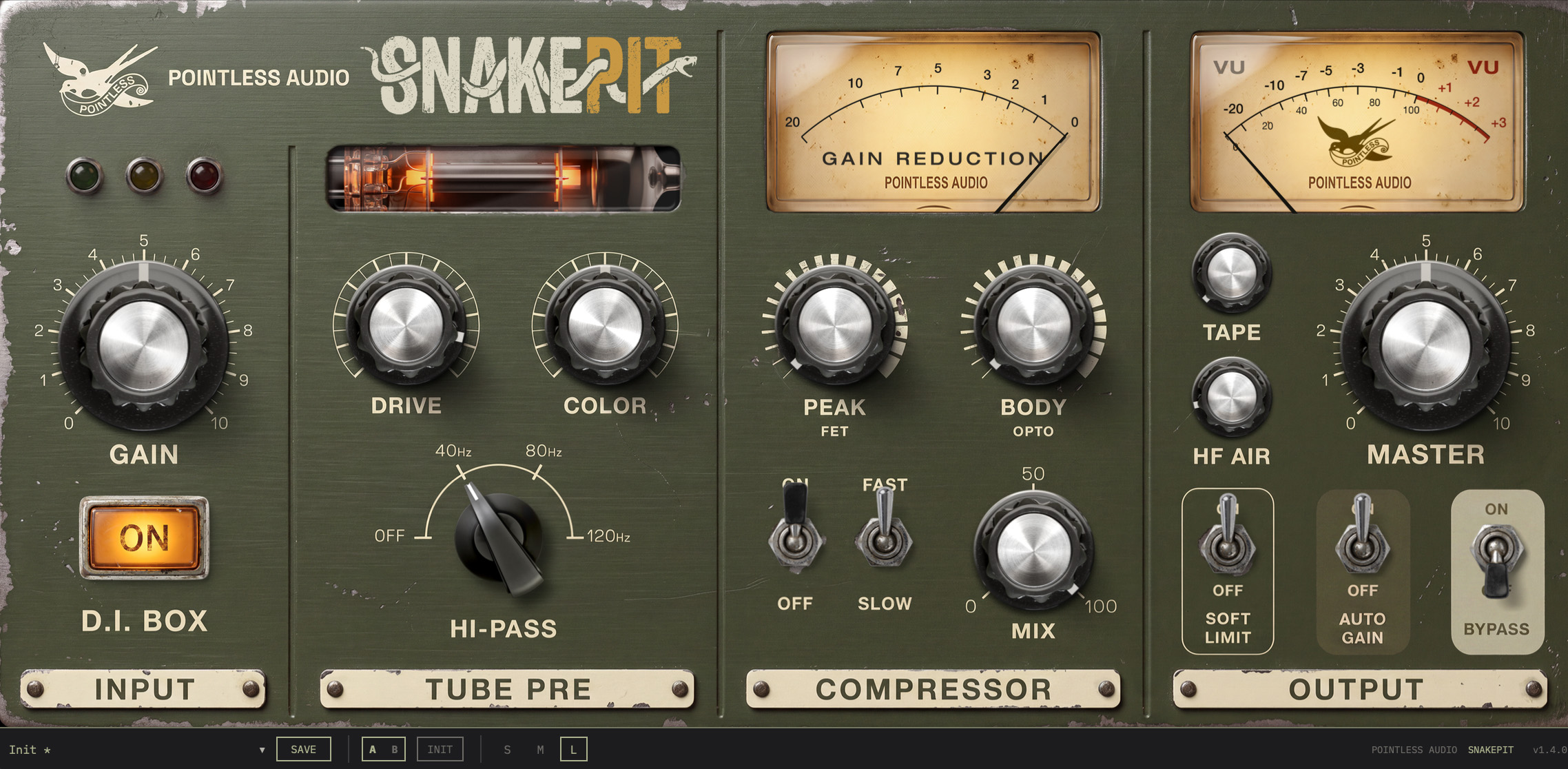

SnakePit plugin interface
Panel · SnakePit · v1.5.3Read the manual

Signal path · from the manual

  1. J1IN
  2. A1HI-PASS
  3. A2VALVE
  4. A3PEAK · BODY
  5. A4HF AIR
  6. A5TAPE
  7. J2OUT

Hear it

The same take twice, level-matched. Switch the plugin off and on while it plays.

Bass

Recorded bass, hip-hop groove

Only the bass goes through SnakePit; the drums stay dry. With the plugin the note holds longer, the finger attack rounds off and there is more body underneath.

Drums

Post-punk drums on the bus

The kick gets more body, the hits round off and the cymbal tails come up. When the bass comes in, the drums sit in front without getting louder.

Full mix

The whole mix, glued

The whole track through the plugin, set to glue without dirt: the mix tightens, the peaks drop almost 2 dB at the same level, the hits round off a touch and the tone stays the same.

What people say

…I particularly like the Snakepit (Tube Channel strip), easy to use and sounds great.

IbboComment on Bedroom Producers Blog →11.10.26

That´s a gem! I love the saturation and the unobtrusive compression does a good job too

Gumroad review →16.10.26

What it does

One tube makes the character

A physical model of a triode — an original design, not a copy of anything — is the single place where the harmonics are made. DRIVE sets how hard it’s pushed; COLOR sets the tone of the whole machine, dark to bright. Everything else exists to feed it well.

Start at the lamps

Three lamps above GAIN: green means signal, yellow means you’re at the level the plugin was voiced at, red watches the peaks. Set GAIN so yellow is on, then forget it. AUTO GAIN holds the output steady, so an A/B against bypass compares tone, not volume.

Two compressors in series

PEAK is the fast, FET-style one: grip on the transients. BODY is the slow, optical-style one: weight on the sustain. Both knobs set how much, never how fast. MIX blends in the dry path for parallel compression; FAST/SLOW sets the release of the slow stage.

Iron at both ends

An iron DI stage you can switch off, and a high-pass (Off/40/80/120) ahead of the valve, so it protects as well as tidies. At the other end: TAPE polish, an HF AIR shelf, an output transformer with a gentle rise around 90 Hz, and a SOFT LIMIT seat belt.

Built around a bass DI

It began as a bass DI, and that low-end rise is most of why a bass sits in a mix instead of just getting louder. But the valve doesn’t know what you feed it: drums, brass, voice, synth bass and a mix bus all work.

16 parameters, 8 presets

From Clean Lift to Bass DI to Drum Bus — eight deliberately conservative starting points. None of them touches GAIN or MASTER: the input level is yours, set with the lamps.

Chart of gain against frequency from 20 Hz to 2 kHz, relative to 1 kHz. The main curve rises by 2.7 dB near 87 Hz and drops steeply below 50 Hz; three more curves show the HI-PASS at 40, 80 and 120 Hz and a dashed curve shows the D.I. box off.
Low-end response of the signal path, relative to 1 kHz, measured on the plugin (SnakePit 1.5.3, release build). With the D.I. box on, the level rises 2.7 dB around 87 Hz and falls away below it, to −14.1 dB at 20 Hz; with the D.I. box off the rise is 1.4 dB. The HI-PASS at 40, 80 and 120 Hz lifts the lower slope out of the way, and a fixed 30 Hz high-pass is always in the chain. Sines at −40 dBFS, DRIVE 0, compressors off.
Two charts, PEAK and BODY, of gain reduction in decibels against knob position from 0 to 100 percent, with four curves for input levels of minus 24, minus 18, minus 12 and minus 6 dBFS RMS. All curves fall as the knob goes up; the louder the input, the earlier and the further they fall.
Gain reduction of the two compressors across their knobs, measured on the plugin (SnakePit 1.5.3, release build). A synthetic bass DI at four input levels; the reduction is the drop in RMS against PEAK and BODY at 0. At −6 dBFS RMS, PEAK at 30 % takes off 1.9 dB and PEAK at 100 % takes off 9.0 dB. A quieter signal starts to be reduced later in the knob's travel.

The heritage

SnakePit sounds like one machine: a single place where the harmonics are made, and a chain built so that place always gets the right level. That’s why GAIN and the lamps come first, why AUTO GAIN exists, and why the compressors sit after the valve instead of fighting it.

The details follow the same logic. The high-pass sits ahead of everything non-linear, because a very low note that reaches a valve comes back out as its own harmonics — you lose the fundamental and keep the buzz. And the low end rises gently around 90 Hz before falling away below: that shape isn’t an equalizer, it’s what iron does at the bottom of its range.

SnakePit is an original design, inspired by the behavior of valve and transformer circuits in general. It is not an emulation of, affiliated with, or endorsed by any manufacturer. One machine, pushed as hard as you like.

“The Snake Pit” was the nickname of Studio A at Motown’s Hitsville U.S.A. in Detroit. SnakePit was built around a bass DI with that kind of chain in mind; it is not a copy of anything in it.

Motown and Hitsville U.S.A. are trademarks of their respective owners. Pointless Audio is not affiliated with, endorsed by, or sponsored by them. The name refers to the studio’s nickname.

Specs

Formats
VST3 + AU + CLAP + AAX
Platforms
macOS (Universal) + Windows 10+ (VST3 + CLAP + AAX) + Linux x86_64 (VST3 + CLAP)
Version
v1.5.3
Latency
69 samples at 44.1 kHz, 73 at 48 kHz (about 1.5 ms), reported to the host
License
Perpetual — no account, no iLok, no subscription

What’s new in 1.5

For those who have it

1.5.3 — Pro Tools (AAX), on Mac and Windows; 6 new factory presets by Andi, a beta tester. The sound is the same.

The compressor works across the whole knob.

PEAK and BODY
Both now start where the knob starts. Before, BODY did nothing until about halfway and PEAK very little until a third. Now around 30 % each is a light couple of decibels, and it grows evenly to heavy at the top. The compressor works the same with AUTO GAIN on or off, and DRIVE no longer moves its threshold.
Presets
The factory presets are retuned to match. Bass Tight and Drum Bus sound as before; Warm Glue, Bass DI, Vocal and Brass now use the slow compressor the way they were meant to.
Start
SnakePit starts on its settings from the first sample (the first 20 ms used to fade in from silence), and user presets no longer store BYPASS.

Already have SnakePit? Same Gumroad link: download it again. With PEAK and BODY at zero the sound is the same as 1.4.5. Projects that use PEAK or BODY open with the new compressor and will sound more compressed than you left them: turn PEAK or BODY down to taste.

How to get it

  1. 01

    Get it on Gumroad

    Checkout runs on Gumroad, which handles payment and VAT. The download link lands in your inbox.

  2. 02

    Download the zip

    Inside: VST3 + AU + CLAP + AAX builds and the manual as PDF. macOS builds are signed and notarized. Linux is a separate tar.gz.

  3. 03

    Install, rescan, done

    macOS: run the signed installer in the zip and pick your formats. Windows: copy the plugin into your plugin folder. Linux: extract the tar.gz, copy the .vst3 folder to ~/.vst3 and the .clap file to ~/.clap; README.txt inside has the steps. Rescan in your DAW. No account, no activation. The manual has the exact paths for macOS and Windows.

Questions

How do I install it?

On macOS, run the installer inside the zip: it is signed and notarized, and lets you pick the formats. On Windows, copy each format into your plugin folder; the AAX goes in C:\Program Files\Common Files\Avid\Audio\Plug-Ins\. On Linux, extract the tar.gz and copy the .vst3 folder to ~/.vst3 and the .clap file to ~/.clap, as README.txt inside the package explains. Then rescan in your DAW. The manual has the exact paths for macOS and Windows; Linux is in README.txt.

Do I need an account, a dongle, or an internet connection?

No account, no iLok, no subscription, no activation. Once installed it runs fully offline.

Does it work in my DAW?

Any host that loads VST3, AU, CLAP or AAX: Pro Tools, Logic Pro, Ableton Live, Reaper, Bitwig, Cubase, Studio One, FL Studio and friends. In Pro Tools it runs as a real-time insert, on Mac and Windows; there is no AudioSuite version.

Does it run on Linux?

Yes: x86_64, VST3 and CLAP, no AU. It needs glibc 2.38 or newer (Ubuntu 24.04+, Debian 13, Fedora 39+); Ubuntu 22.04 and Debian 12 are too old. The CLAP build is experimental. Same sound engine as the macOS and Windows builds. If something doesn’t load or sounds wrong, write to [email protected].

Windows says the file is from an unknown publisher.

Windows builds are not code-signed yet, so SmartScreen may warn on first run. The zip you download from Gumroad is the zip we built — choose “Run anyway” or unblock the file in Properties.

Refunds?

There is no demo version. Buy it, use it on your own music for 14 days, and if you don’t keep it, write to [email protected] for a full refund. The refund goes through Gumroad.

Have updates been free?

So far, yes: every update has been free, delivered through the same Gumroad link.

I got it while it was free. Is it still mine?

Yes. Anything you downloaded before 26 October stays in your Gumroad library, with its updates.

SnakePit
€24
Buy SnakePit Or all six for €49

Pay once. No iLok, no account, no subscription. There is no demo version: use it on your own music for 14 days, and if you don’t keep it, you get a full refund.
